Category：2D Fixed Mount Barcode Scanner
Product ID：LV3000R
Views:2800
Product Introduction：The LV3000R have a interface is USB or RS232.It can be embedded into Kiosk/Vending Machine/Ticketing machines/Locker to read printed or screen barcodes.OEM customized services.Supply read all 1D barcodes and 2D barcodes,PDF417,Qr code,Data Matrix,Aztec barcode,etc.
(1).Ease of integration
The design is easy to integrate into your terminal device.The small size design of shell easy integration into various solutions. This 2D fixed barcdoe scanner has an IP54 rating making and it dust & water-proof
(2).Excellence Technology
The technology includes the digitizer,optical,embedded & decoder systems. The LV3000R barcode scanner supports all standard 1D barcode and 2d barcode symbologies. By using the users guide provided, the user can set up the scanner to its user environment ideally.Equip your solutions with the utmost in scanning power and efficiency for any application of CMOS or CCD barcode scanner module.
Product Specifications:
| Model: | LV3000R |
| Interface: | USB/RS232 |
| Image Sensor: | CMOS |
| Resolution | 10mil |
| Light Source: | LED (617.5nm - 633.5nm) |
| Symbologies | 2D: PDF 417、QR Code (Model 1/2), Data Matrix (ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, LP Code, Chinese Sensible Code,etc. 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A,UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93,etc. |
| Resolution | 750 * 480 |
| PCS | ≥30% |
| Power Consumption | 1.75W (max.) |
| Notification | Beep |
| Operating Temperature: | -10°C to 50°C |
| Weight: | 70 g |
| Dimension : | 49.0*37.0*25.0mm |

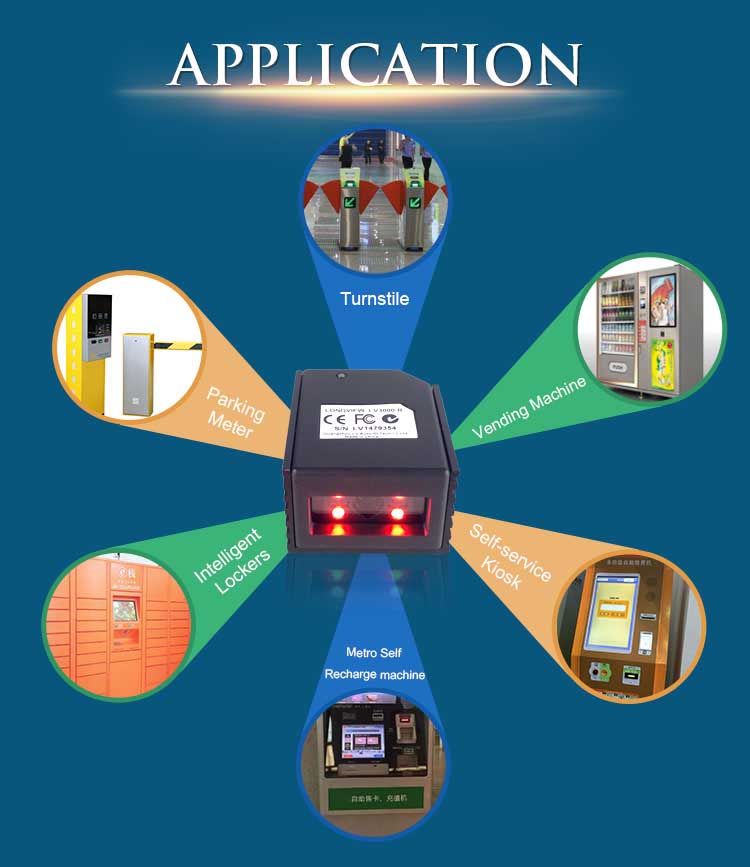

Applications:
