Category：2D Fixed Mount Barcode Scanner
Product ID：RD4500I
Views:3211
Product Introduction：The RD4500I have a interface is USB or RS232.It can be embedded into Kiosk/Turnstile/Vending Machine/Locker to read printed or screen barcodes.The RD4500I has no cover and it can be provided OEM customized services.Even in dark conditions,the RD4500I can also read the phone screen bar code.
The RD4500I Demo Video: https://youtu.be/t16ThuUIMTQ

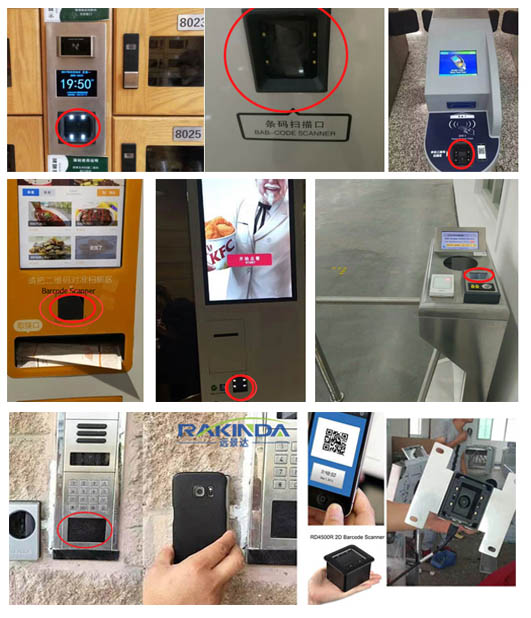

(1).Ease of integration
It can be easily integrated into access control system, kiosk, vending machine, etc.Designed primarily for such applications as electronic tickets,smart home barcode scanner applications.
This 2D fixed barcdoe scanner has an IP54 rating making and it dust & water-proof
(2).Excellence Technology
The RD4500I is excellent in reading both printed and mobile phone screen QR code. Even in dark conditions,the RD4500I can also read the phone screen bar code.
The RD4500I also has industrial-grade sensors that eliminate the need for moving parts and are designed to be easily integrated into OEM equipment based on rich experience of Internet of things.
Product Specifications:
| RD4500I Performance | |||
| Processor | IOTC 0370 CHIP | ||
| Image Sensor | 752×480 CMOS | ||
| Interface | RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS) | ||
| Symbologies | 2D | PDF417, Data Matrix, QR Code | |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128,Code 93 ,ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey | ||
| Scan Mode Type | Sense mode | ||
| Resolution | 10mil | ||
| Light Source | White LED | ||
| Scan Window | 38.3mm×60.4mm | ||
| PCS | ≥30% | ||
| FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° | ||
| Mechanical/Electrical | |||
| Power Consumption | 1.75W (max.) | ||
| Notification | Beep | ||
| Size (L x W x H) | 71×61×50mm | ||
| Weight | 280g | ||
